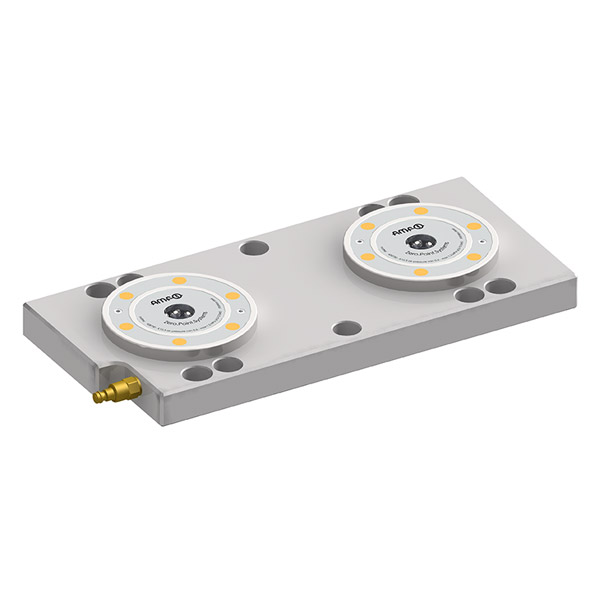

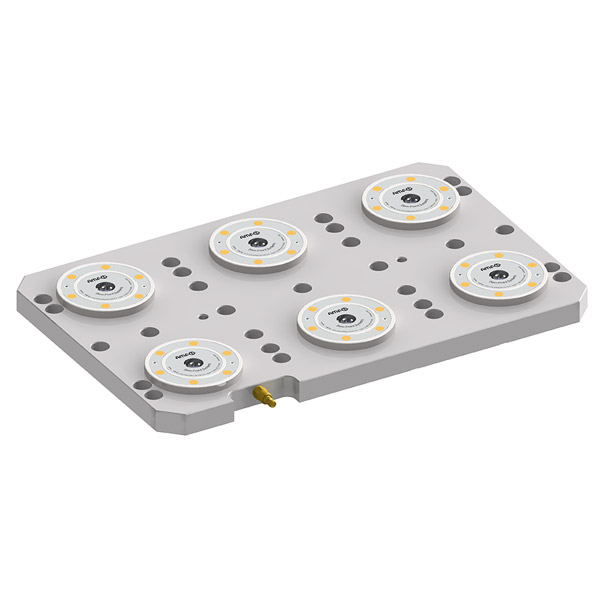

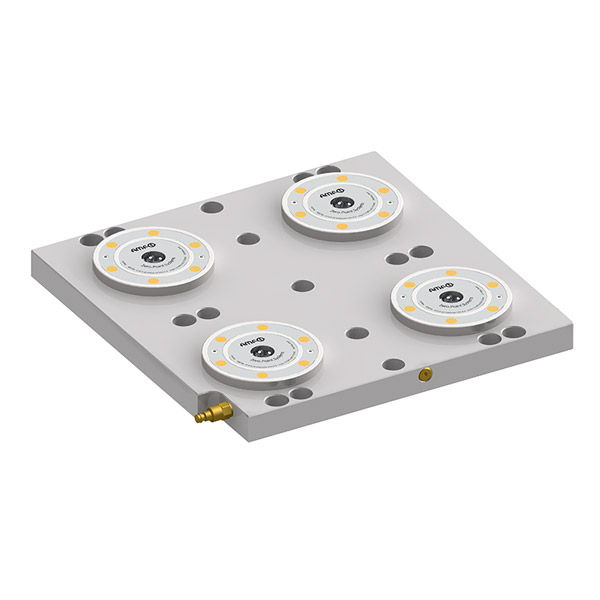

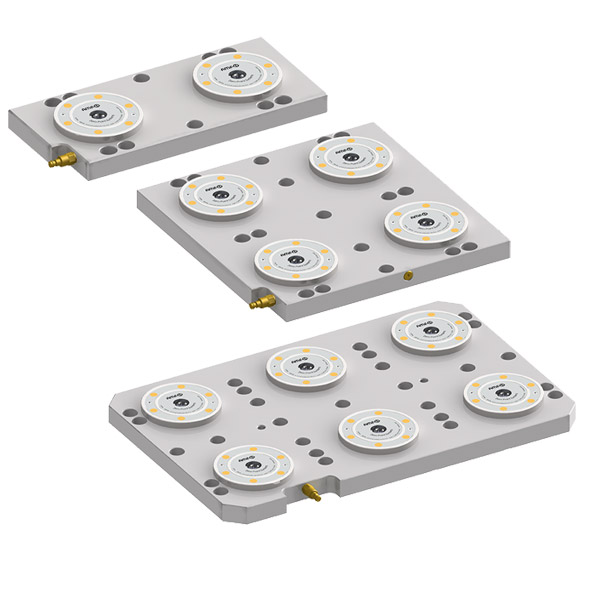

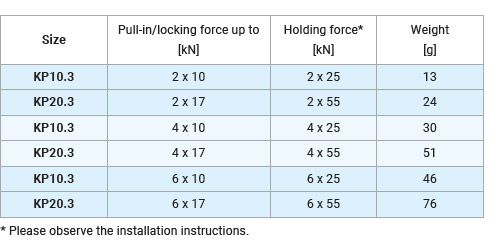

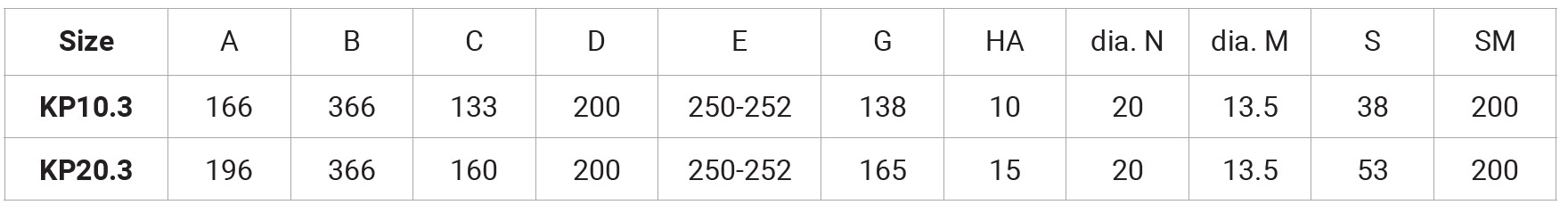

2- 4- and 6-point Pneumatic Clamping Stations

No. 6206S2L, 6206S4L, 6206S6L

• Pneumatic unlocking.
• Opening operating pressure:
  • KP10.3 min. 5 bar.
  • KP20.3 min. 4.5 bar.
• Steel, unhardened.
• Repeat accuracy < 0.005 mm.

Design

Pneumatic clamping station for setting time-optimized clamping on machine tables with groove spacing of 63, 100 and 125 mm. Fastening is via M12 socket head screws. At least two fitting bores are attached for alignment.

• The insertion dimension of the clamping modules is 200 mm.
• The pneumatic quick-coupler is premounted.

Advantage

Low overall height
