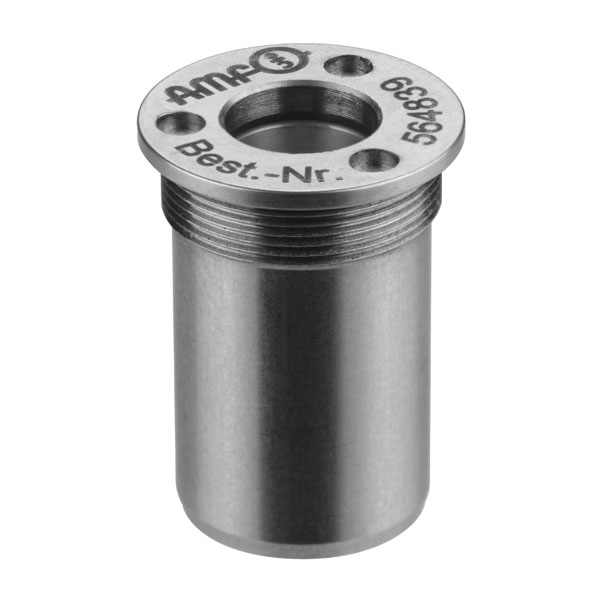

Installation Clamping Module, Screw-in Version

No. 6203SP

• Pneumatic opening.
• Opening operating pressure: min. 6 bar – max. 12 bar.
• Cover and piston hardened.
• Repeatability < 0.02 mm.

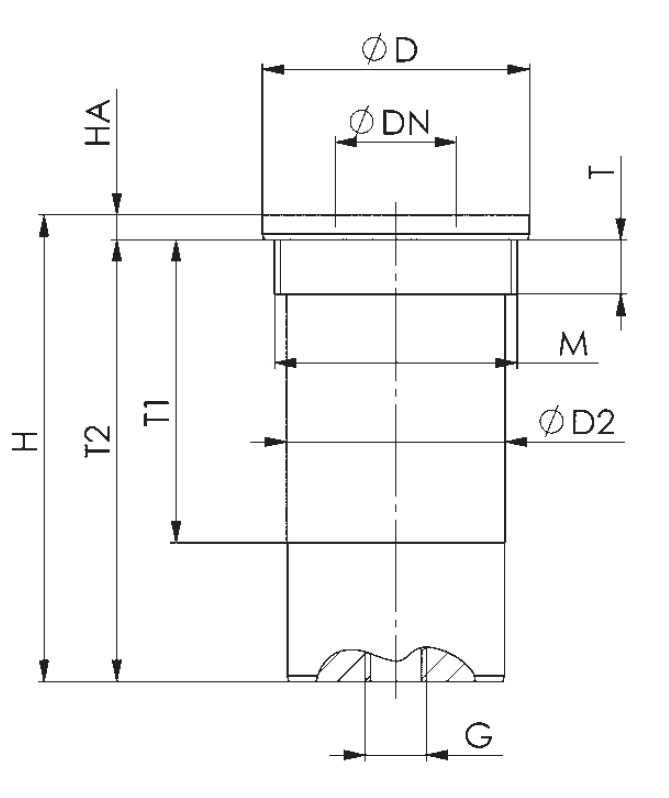

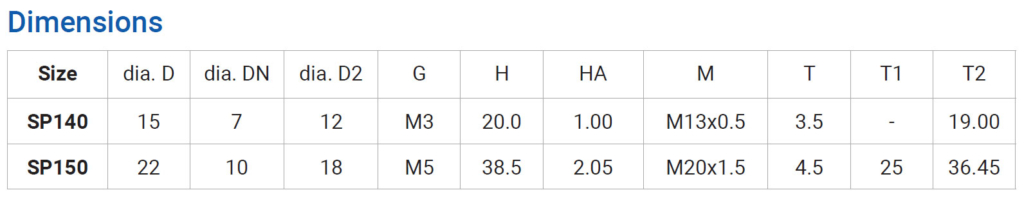

Application

Zero-point clamping system for set-up-time-optimized clamping during cutting and non-cutting machining.

Note

The installation clamping module has high holding, pull-in and locking forces. This is opened pneumatically (1) and locked mechanically through spring force. Subsequent uncoupling of the pressure lines is possible at any time (module is clamped pressure-free).

The clamping module has one connection: 1x pneum. Open (1).

For ease of installation, we recommend the size 140 installation tool.
