Surface-Mounted Clamping Module

No. 6370AARL

• Pneumatic opening.
• Opening operating pressure: min. 8 bar – max. 12 bar.
• Retensioning operating pressure (turbo): min. 5 bar – max. 6 bar.
• Cover and piston hardened.
• Repeatability < 0.005 mm.

Application

Zero-point clamping system for set-up-time-optimized clamping during cutting and non-cutting machining.

Note

The surface-mounted clamping module has high holding, pull-in and locking forces. This is opened pneumatically (1) and mechanically locked through spring force. To achieve the specified pull-in and locking forces, it must be briefly retensioned pneumatically (turbo) (2). Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free).

The contact surface is the upper surface of the housing.

Use of the pneumatic pressure booster 6370ZVL is recommended.

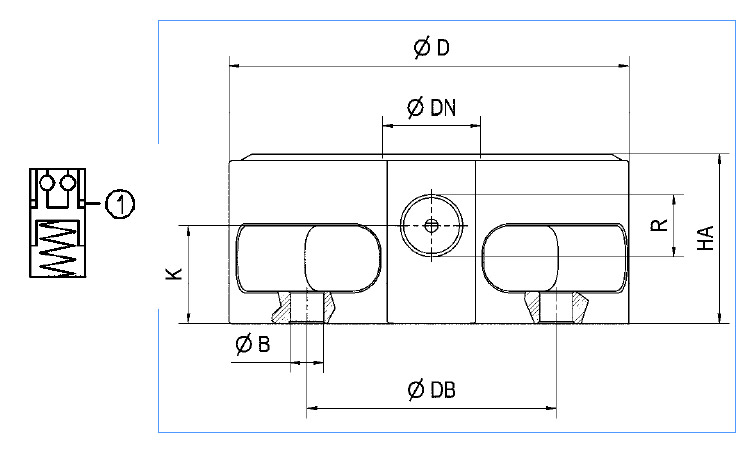

The clamping module has two connections: 1x pneum. opening (1) / 1x pneum. retensioning (turbo) (2).

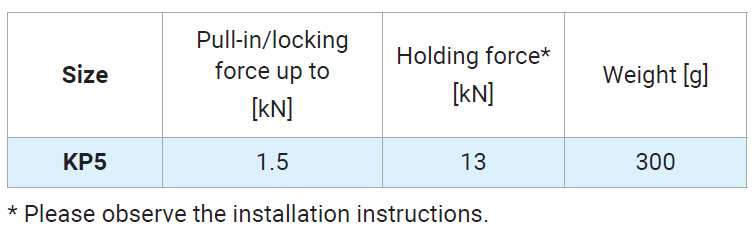

Individual housing on request.
