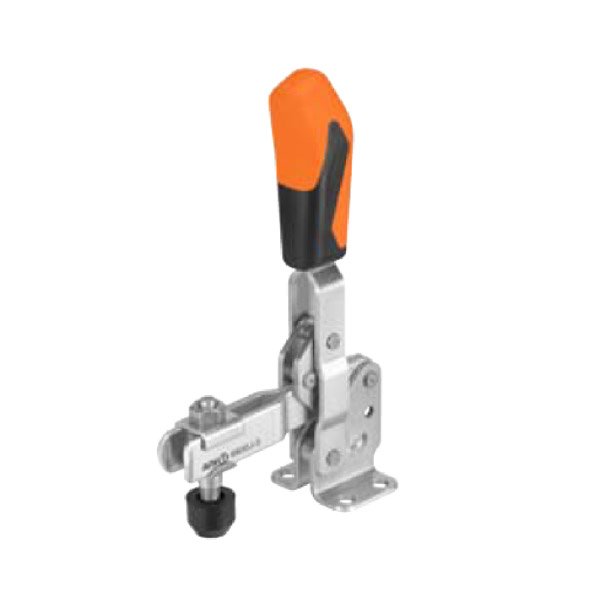

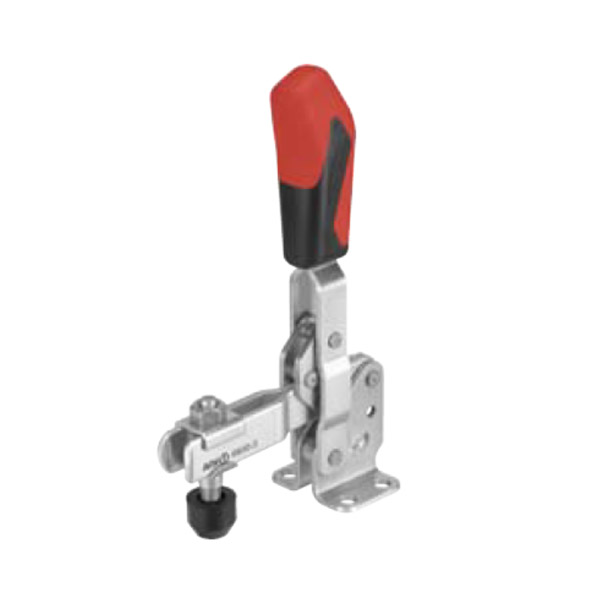

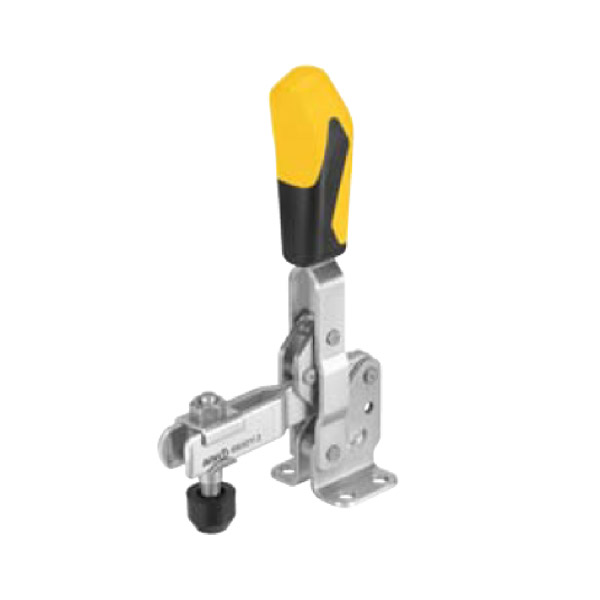

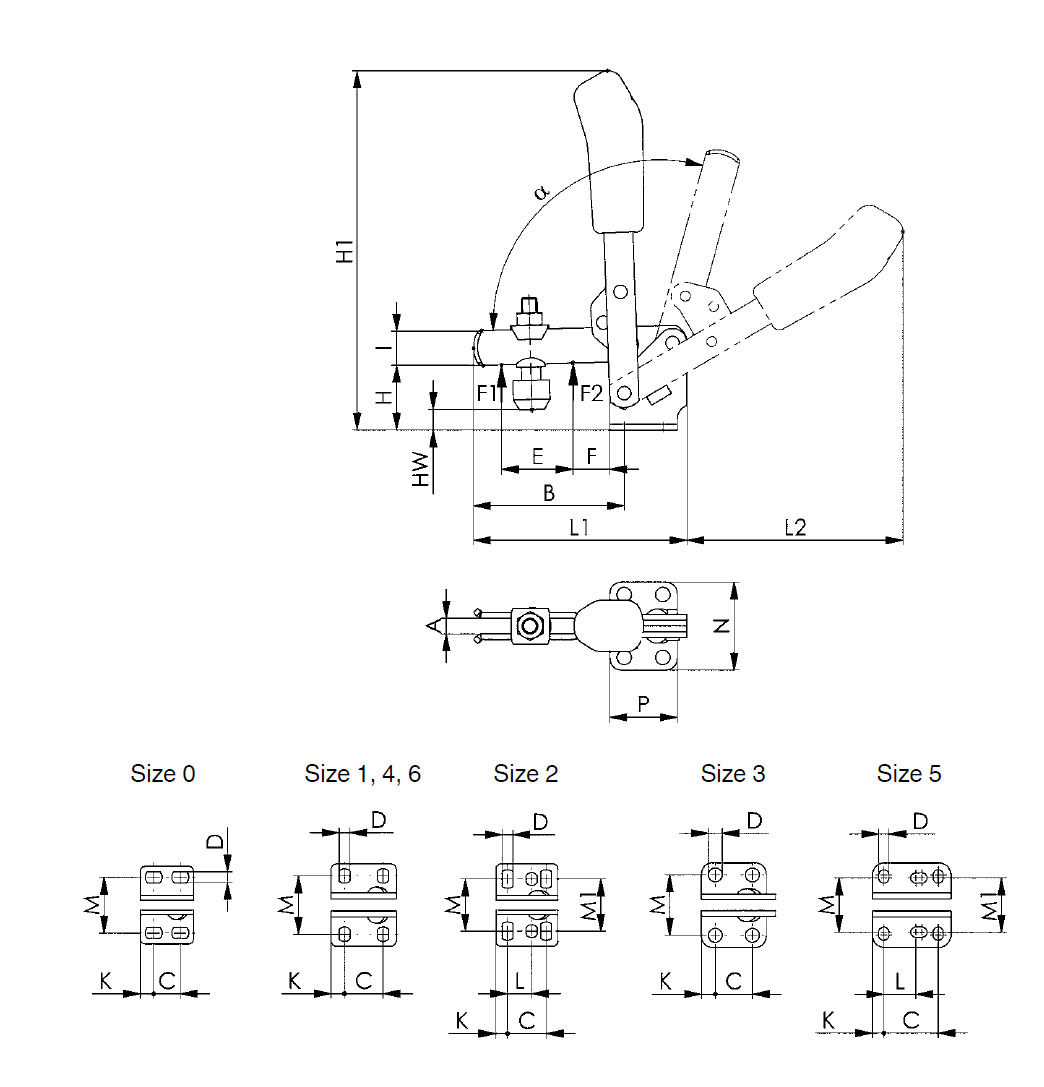

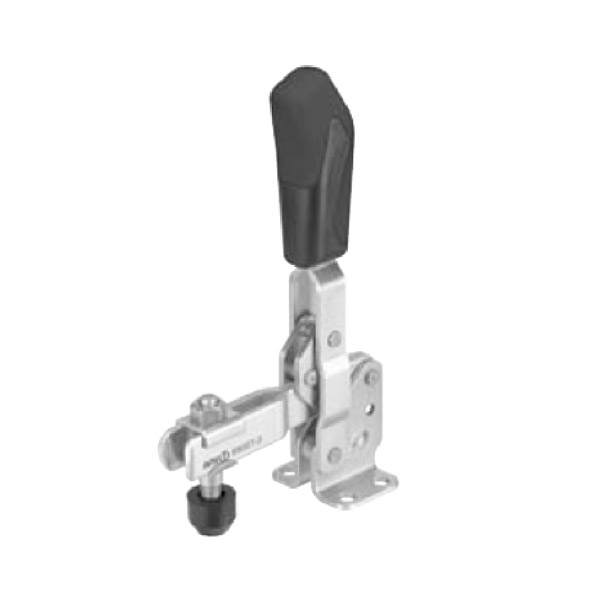

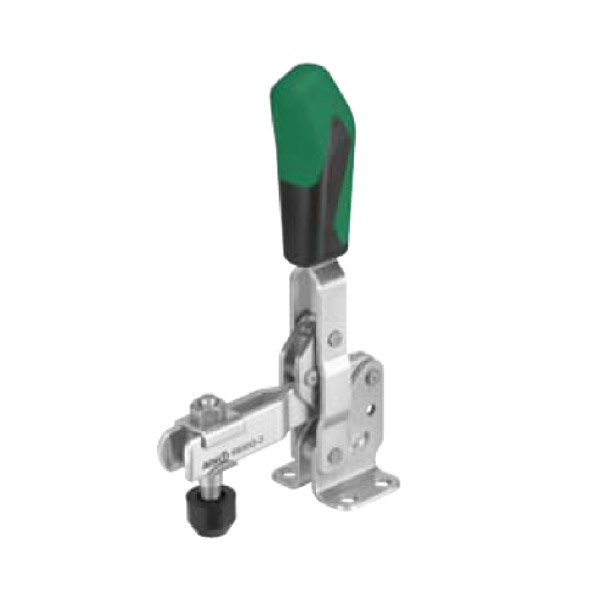

Vertical Toggle Clamp
No. 6800, 6800ESD, 6800B, 6800NI
With open clamping arm and horizontal base. Galvanized and passivated. Rivets made of stainless steel, which, for sizes 2 to 6, run in hardened bushings. Bearings are pre-lubricated.
Ergonomic, oil-resistant handle with large grip surface and soft components. Safety clamping piece with finger protection, lock washer for the thrust bolt at the end of the clamping arm. Complete with tempered, galvanized clamping screw no. 6890.
Options include handle color, metal finish and optical measurement version for photogrammetric use.
| Metal | Galvanized, Stainless Steel, Matte Black |
|---|---|
| Handle Material | Electrostatic conductive, Rubber Handle |
| Handle Color | Black, Blue, Green, Orange, Red, Yellow |

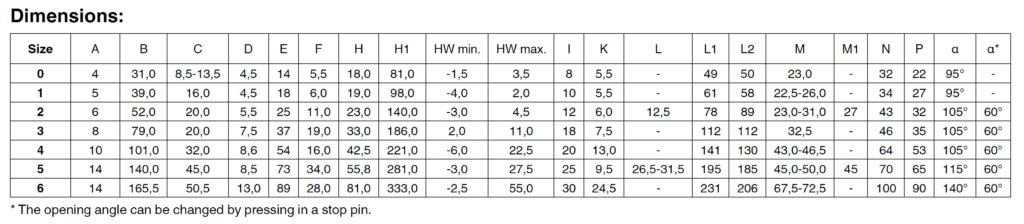

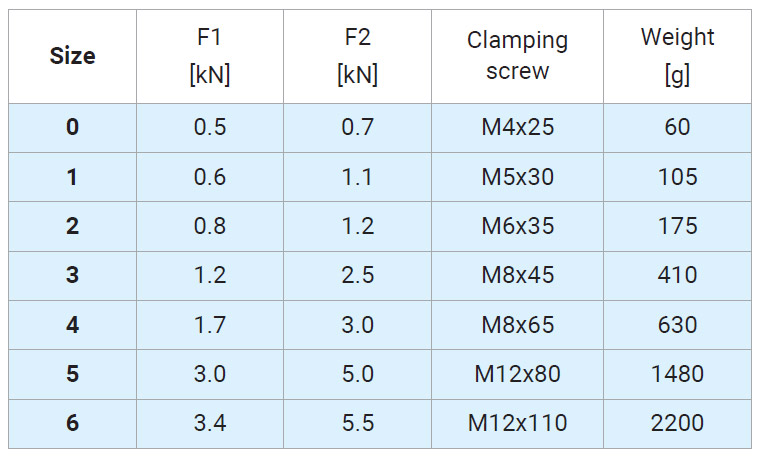

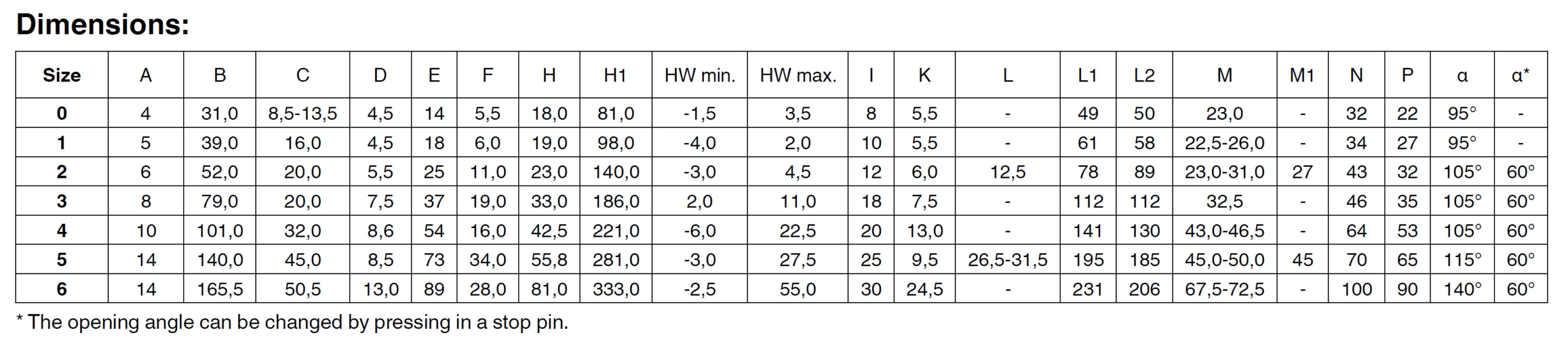

| Size | Size 0, Size 1, Size 2, Size 3, Size 4, Size 5, Size 6 |
