Link Clamp, Pneumatic, Flange Version

No. 6829V

Dual acting

Parts of mechanism are made of steel and blued. Piston rod non-rusting, polished. Body is made of aluminum, anodized. HART-COAT® surface for wear-resistance.

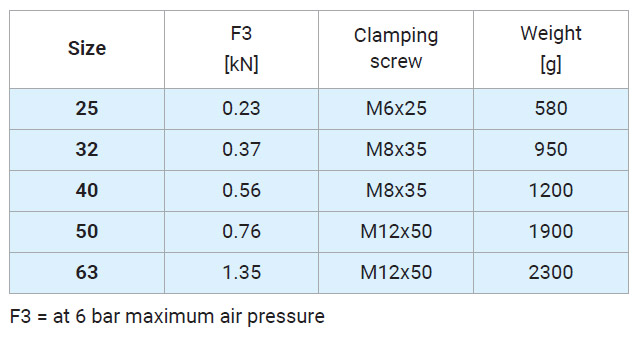

Complete with clamping screw.

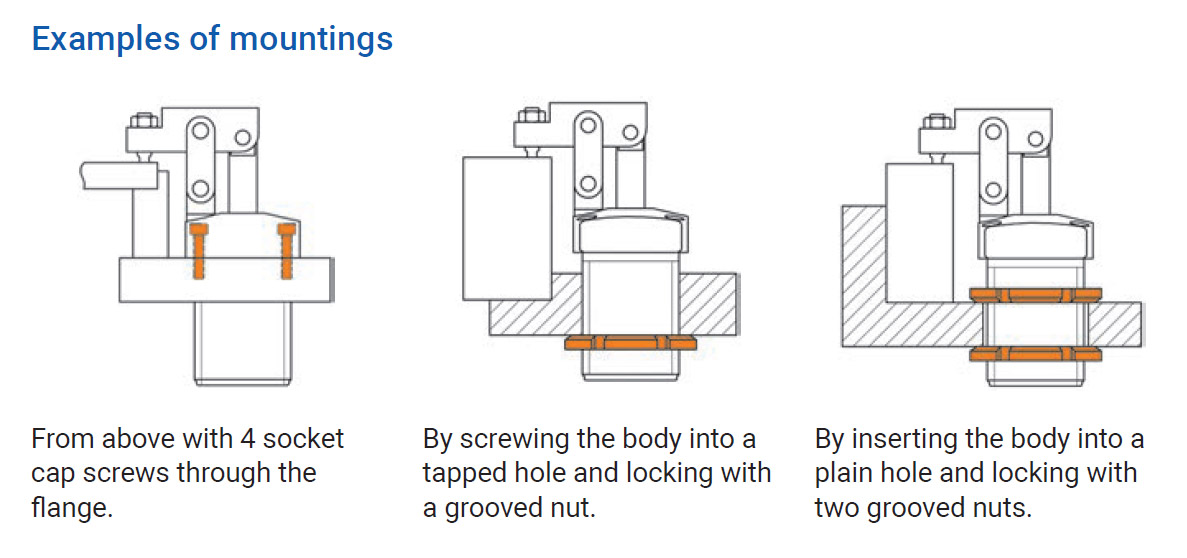

Attachment options

• from above by cylinder screws through the flange
• screwed in using the threads and secured with lock nut
• both ends secured with lock nuts

Accessories (not supplied as standard)

• lock nut no. 6829N
• clamping screw no. 6880

Note

The lever mechanism can be dismantled so that it can be individually modified. The mounting holes in the flange are similar to those in threaded flange No. 6829GF.

Operate only with lubricated air.
