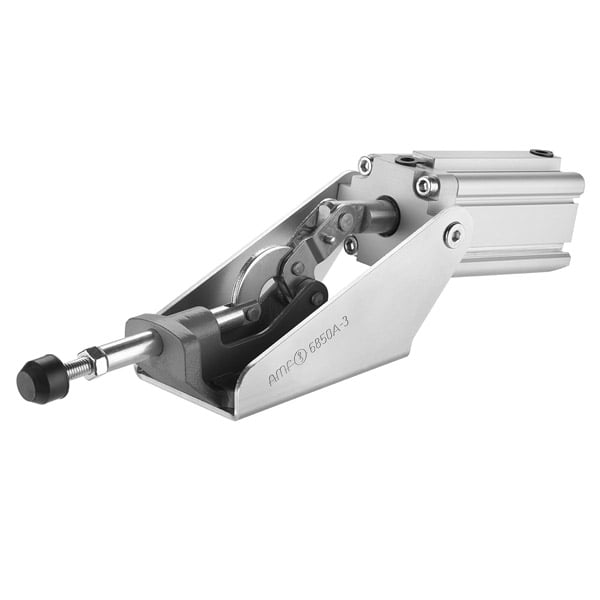

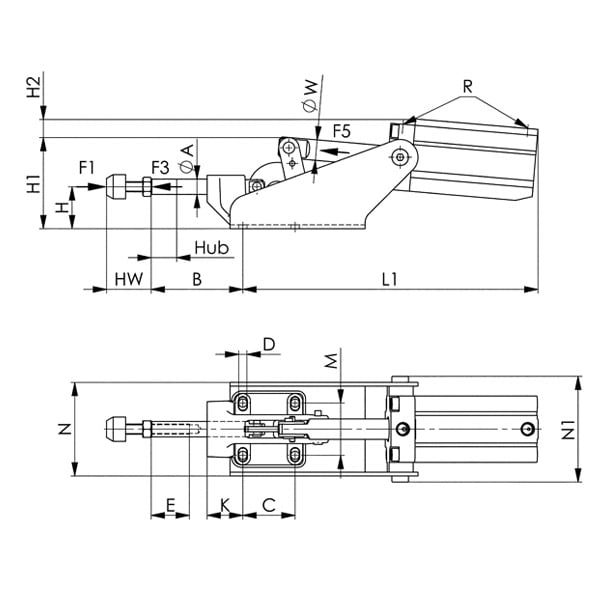

Push Type Pneumatic Toggle Clamp

No. 6850A

Push-type clamp.

Heavy version for long working life. Pneumatic cylinder with magnetic piston for end-position monitoring. Console galvanized and passivated, clamp body made of malleable iron casting, painted. Lever parts and push rod made of tempered steel, galvanized and passivated. Stainless steel rivets. Bearing positions are greased.

Complete with tempered, galvanized clamping screw no. 6880.

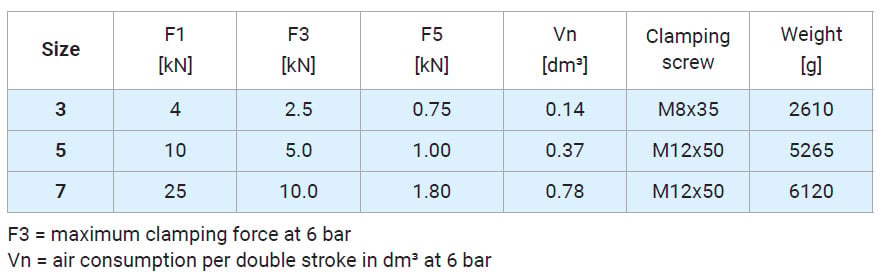

Note

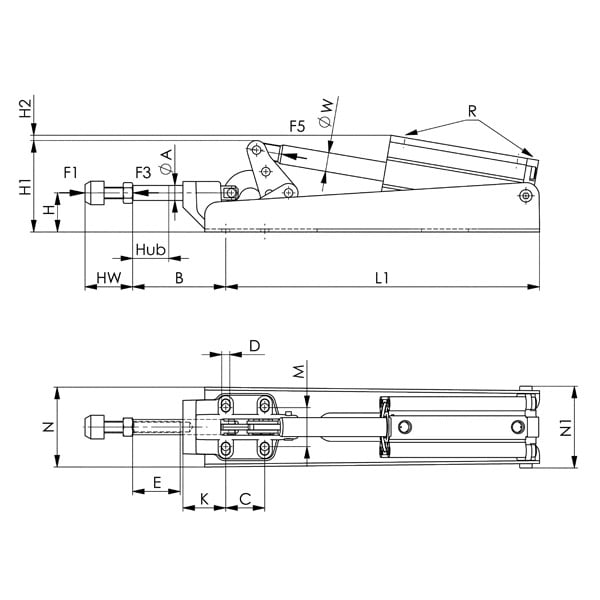

• Sizes 5 and 7 are not to design, and have long consoles.
• Suitable proximity switches for end-position monitoring are available using order no. 392241.
• 0.3 m PUR cable with M8 connector and rotatable knurled nuts.
• Switching function: NOC. Output: PNP.
