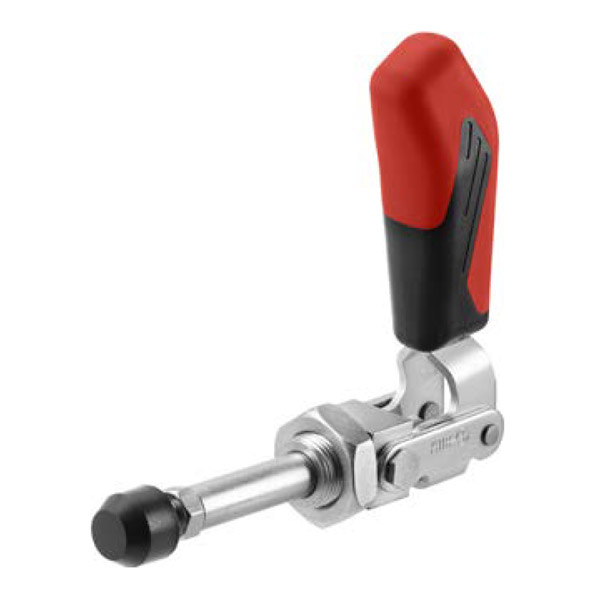

Push-Pull Type Toggle Clamp

No. 6844, 6844NI, 6844ESD

• Short version. For push- and pull-clamping.
• Long rod-guide with attaching thread and nut.
• Galvanized and passivated. Stainless steel rivet. Shoulder screws tempered. Bearings are
  pre-lubricated.
• Ergonomic, oil-resistant handle with large grip surface and soft components.
• Complete with tempered, galvanized clamping screw no. 6880.

Application

Toggle for direct fit up in metal plates or fixtures, using its front attaching thread or by
means of solid base angle no. 6843.
