Swing Clamp, Pneumatic, Flange Mounting Version

No. 6829KR/KL

double-acting

For recessed installation in fixtures. Both compressed air connections are in the flange. Piston rod non-rusting, polished. Body is made of aluminum, anodized. HARTCOAT ® surface for wear-resistance. Including screw and spring washer for simple setting of the clamp arm position.

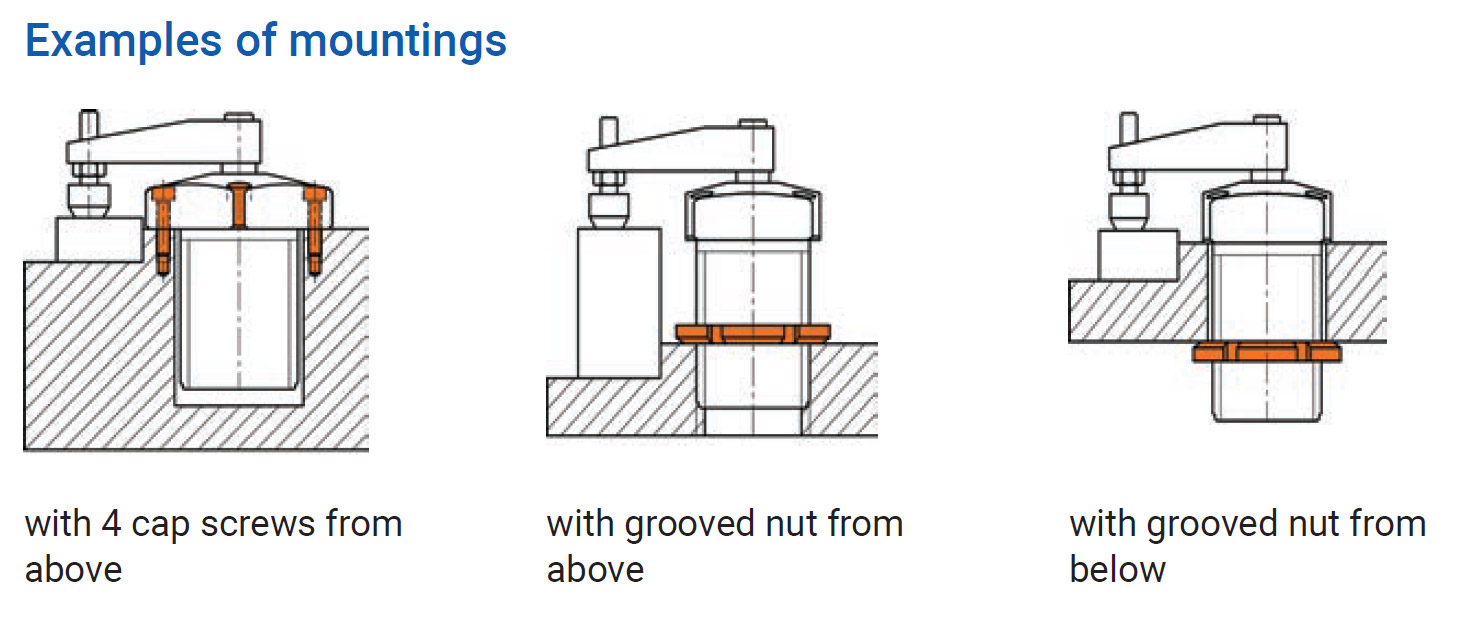

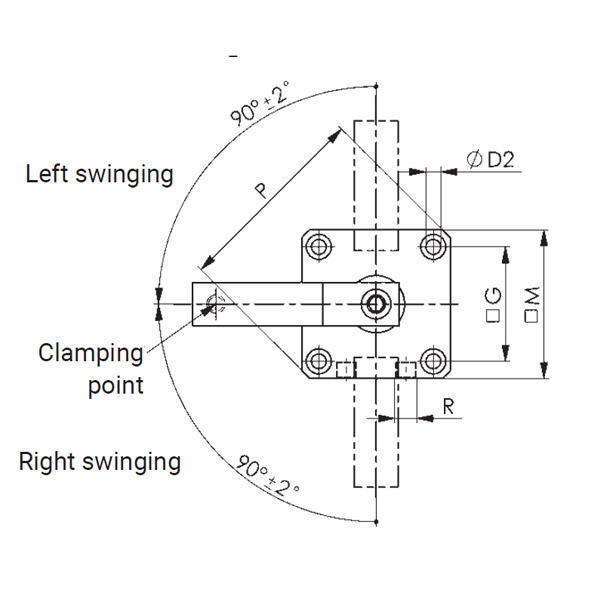

Mounting

• from above with cap screws through the flange
• from below in a bore in the fixture using grooved nuts and clamping against the flange
• from above with grooved nuts against the fixture

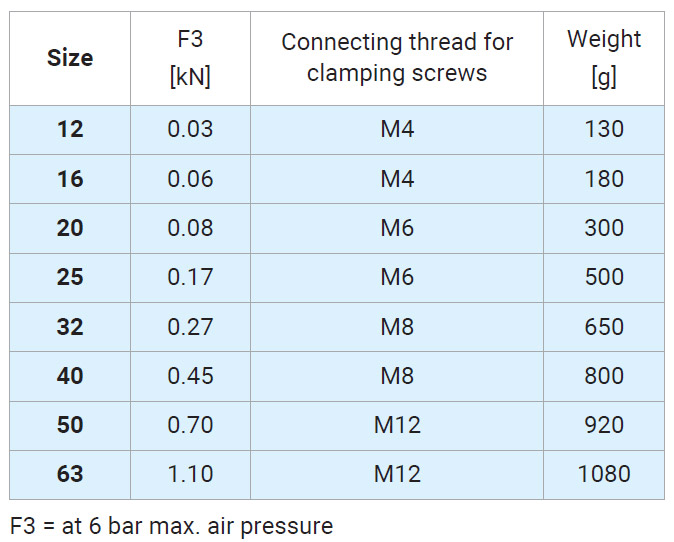

Accessories (not included in pack)

• Clamping arm 6829SP
• Grooved nut 6829N
• Clamping screw 6880

Note

• The mounting holes in the flange are the same as in threaded flange no. 6828GF.
• Operate only with lubricated air.
