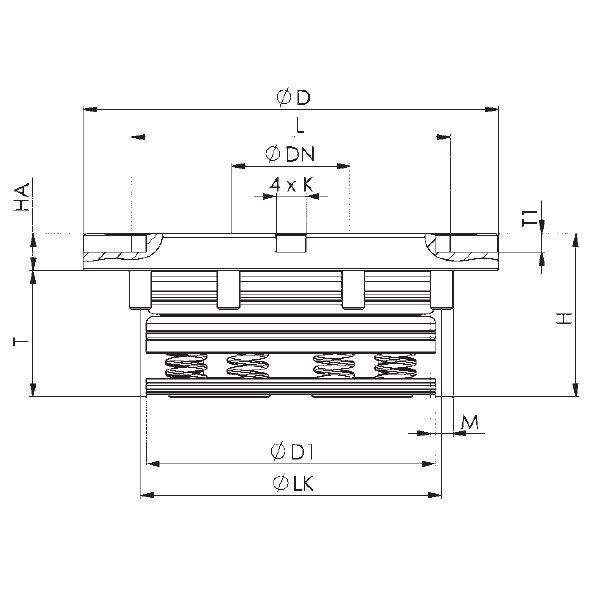

Installation Clamping Module With Indexing

No. 6206ILA

• Pneumatic opening. Pneumatic blow-out.
• Opening operating pressure:
  • KP10.3 min. 5 bar – max. 12 bar.
  • KP20.3 min. 4.5 bar – max. 12 bar.
• Retensioning operating pressure
• min. 5 bar / max. 6 bar.
• Cover and piston hardened.
• Repetition accuracy < 0.005 mm.

Application

Zero-point clamping system for set-up-time-optimized clamping during cutting and non-cutting machining.

The indexing function of the clamping module prevents the pallet from twisting, enabling exact positioning every 90°.

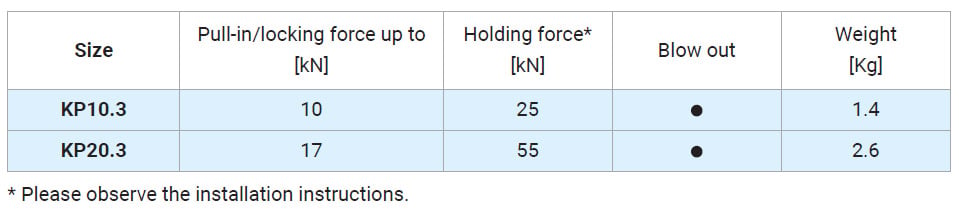

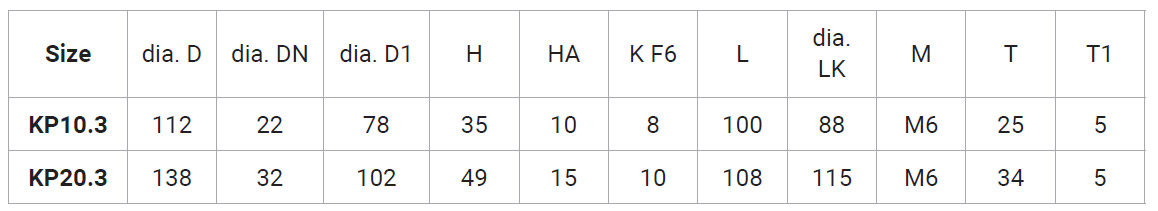

Note

The installation clamping module has high holding, pull-in and locking forces. This is opened pneumatically (1) and mechanically locked through spring force. Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free).

The clamping module with blow-out and support control has two connections:

1x opening (1), 1x pneum. blow-out and support control (3). The pneumatic blow-out and support control can optionally
be connected.)
