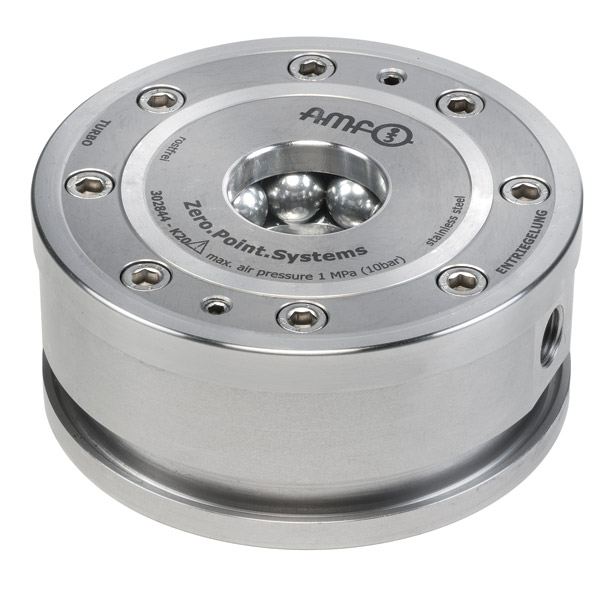

Surface Mounted Clamping Module

No. 6370AARLA

• Hydraulic opening. Pneumatic blow-out.
• Opening operating pressure: min. 50 bar – max. 60 bar.
• Cover and piston hardened.
• Repeatability < 0.005 mm.

Application

Zero-point clamping system in combination with hook clamping flange 63707B for set-up-time-optimized clamping during cutting and non-cutting machining.

Note

The surface-mounted clamping module has high holding, pull-in and locking forces. This is opened hydraulically (1) and mechanically locked through spring force. Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free).

The clamping module with blow-out and support control has two connections: 1x hydr. opening (1) / 1x pneum. blowout and support control (3). (The pneumatic blow-out and support control can optionally be connected.)
Individual housing on request.
